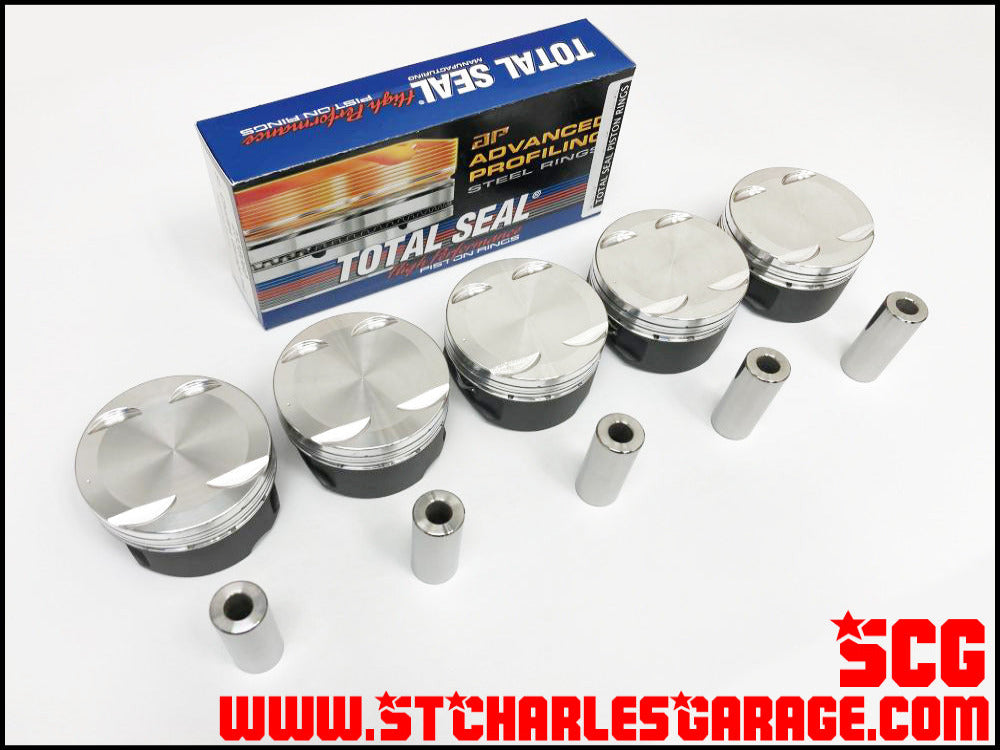

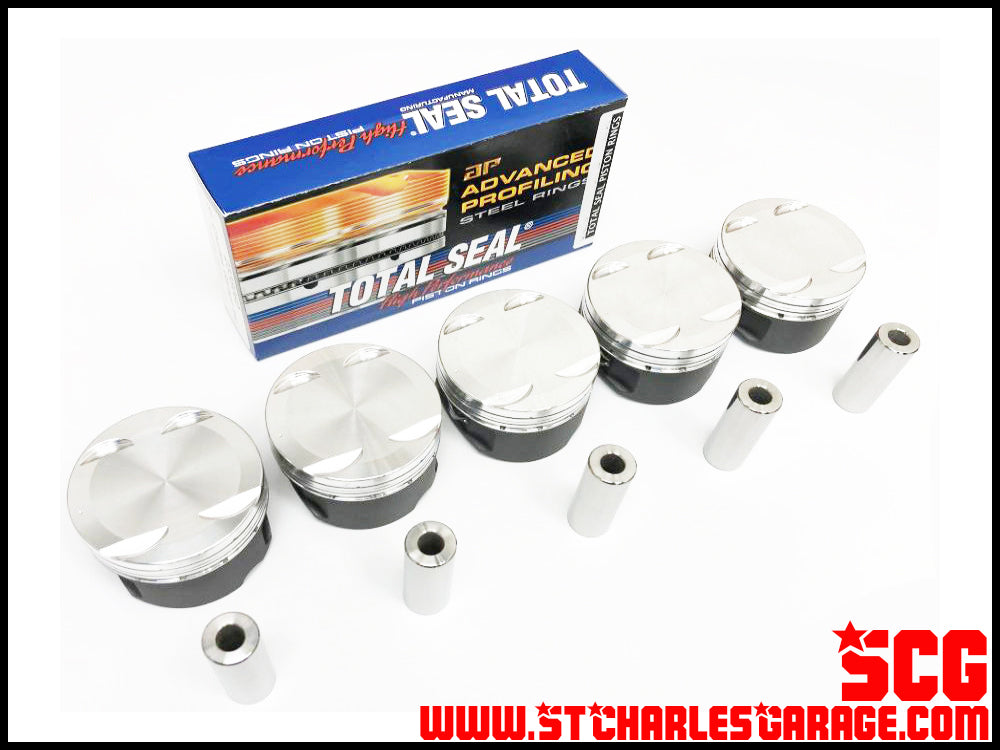

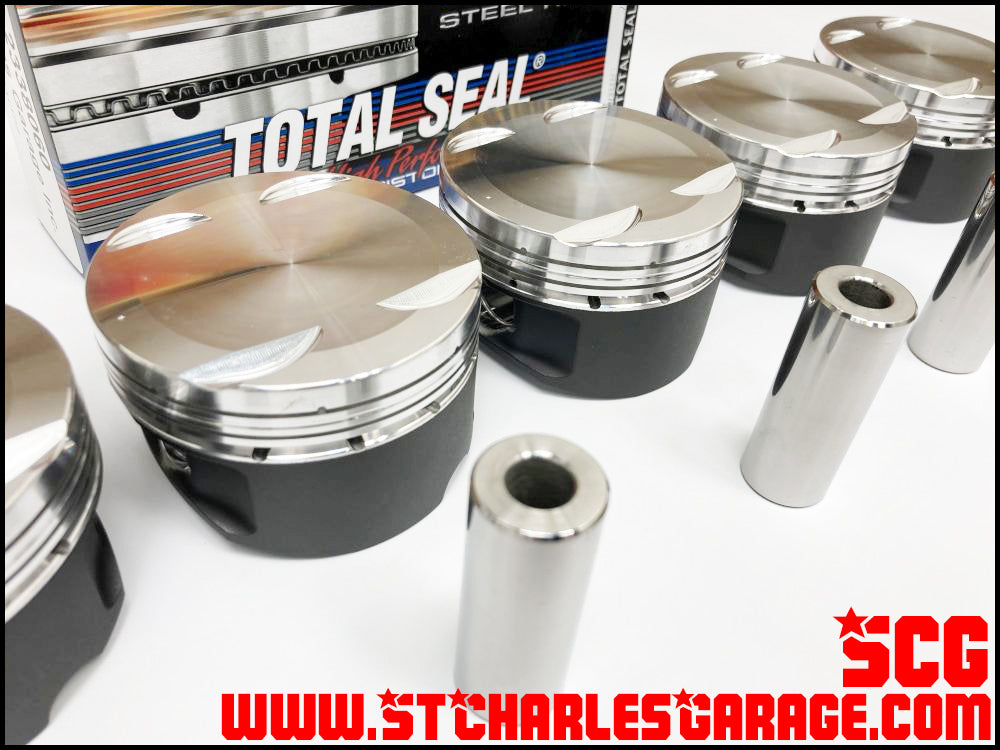

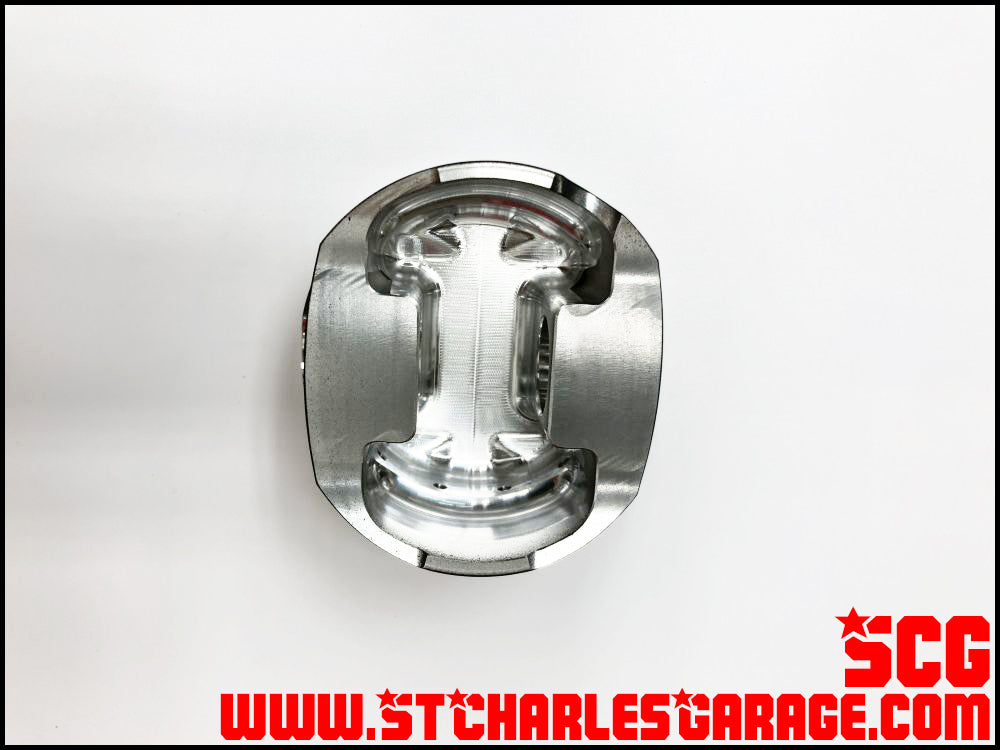

1000HP Diamond TTRS/RS3 2.5L TFSI DAZA/DNWA Forged Pistons

These are our custom spec pistons from Diamond pistons! These are the best available pistons for stock block builds.

• 2618 Alloy For High Horsepower Applications
• Extra Thick Dome and Ring Lands
• 23mm Heavy Duty H13 Pins
• Offset Pins For Quiet Operation
• Full Round Skirt Design
• Lateral Gas Ports

• Heavy Duty Total Seal Ring Package w/ 1.2 Top Ring
• 10:1 Compression Ratio
• Correct Compression Height
• Large Valve Pockets For Oversized Valves & Aftermarket Cams
• 82.5mm Bore Size
• Line2Line Skirt Coating For Skirt Wear Protection & Less Friction (Optional)

Line2Line Skirt Coating Info:
We’re excited to announce that Line2Line abradable skirt coating is now available on our custom piston kits.

Line2Line’s proven coating technology represents a major advancement in aftermarket piston performance. Their proprietary abradable coating is applied at a controlled thickness and precisely conforms to optimal geometry during engine break-in, creating an ideal piston-to-bore relationship.

This process allows for tighter operational clearances while providing durable skirt protection and improved lubrication characteristics. The coating helps retain oil, reduce friction, and minimize piston slap and ring flutter compared to uncoated pistons — resulting in improved ring seal and reduced wear on both pistons and rings.

Key Benefits
• Stabilizes the piston within the bore for improved ring seal
• Reduces piston slap and helps prevent false knock detection
• Protects piston skirts from scuffing
• Enhances oil retention on contact surfaces
• Reduces friction for smoother operation
• Promotes hydrodynamic sliding under load

This upgrade delivers measurable improvements in durability, efficiency, and overall engine performance.
