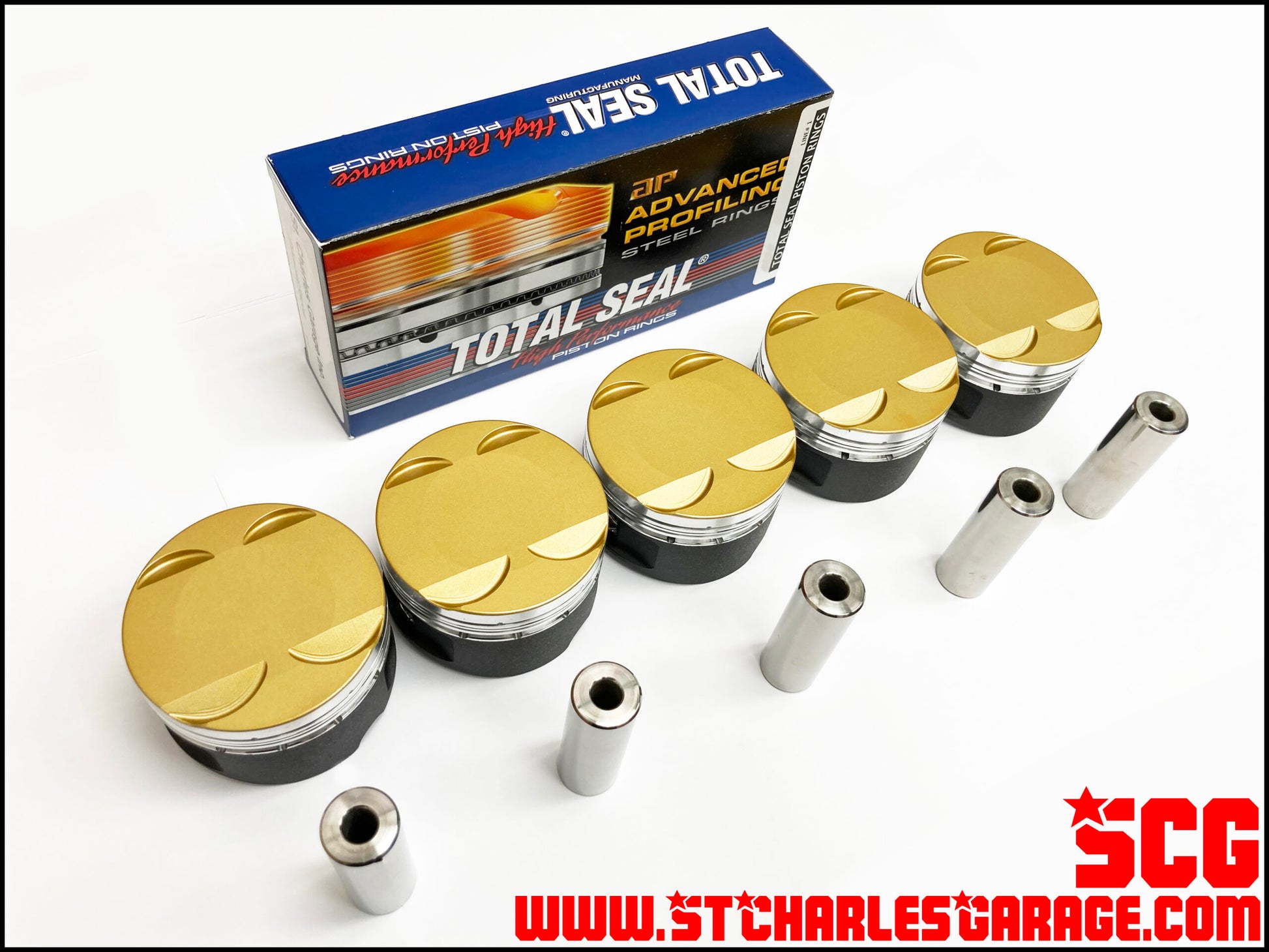

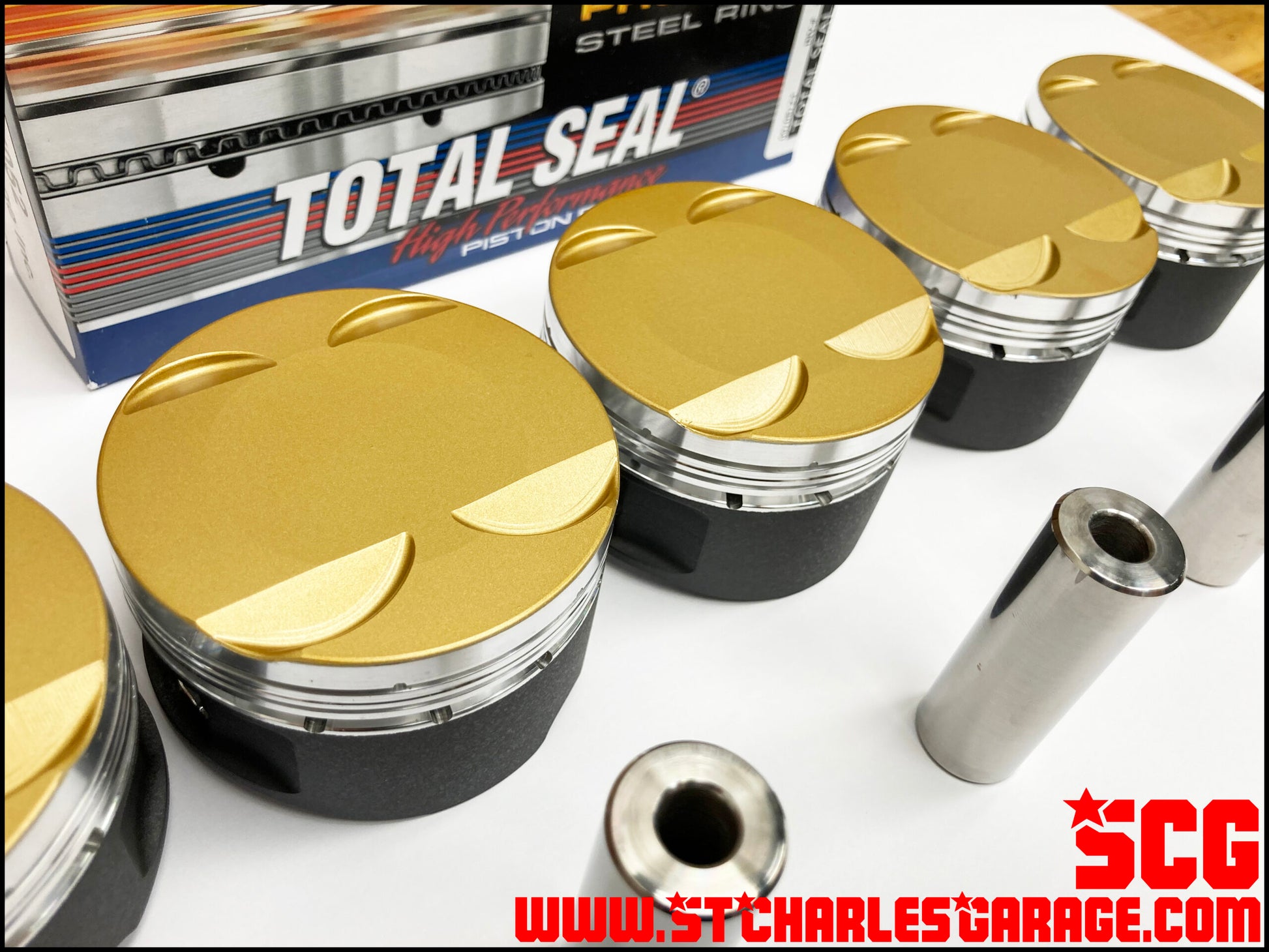

1500HP Diamond TTRS/RS3 2.5L TFSI DAZA/DNWA Forged Pistons

These are our custom spec pistons from Diamond pistons! These are the pistons for those looking to set the world on fire and break records. Or anyone just looking for a really strong set of pistons ready for alot of boost!

• 2618 Alloy For High Horsepower Applications
• Extra Thick Dome and Ring Lands
• 22mm  Heavy Duty H13 Pins (Optional DLC coating)
• Full Round Skirt Design
• Lateral Gas Ports
• Skirt Coating For Skirt Wear Protection & Less Friction
• Heavy Duty Total Seal Ring Package w/ 1.5 Top Ring
• 10:1 Compression Ratio
• Large Valve Pockets For Oversized Valves & Aftermarket Cams
• Ceramic Crown Coating
• Additional Deck Clearance For Machined Blocks & Heads

Additional Options: (Contact Us For Pricing)
Different Compression Ratios
23mm Pins

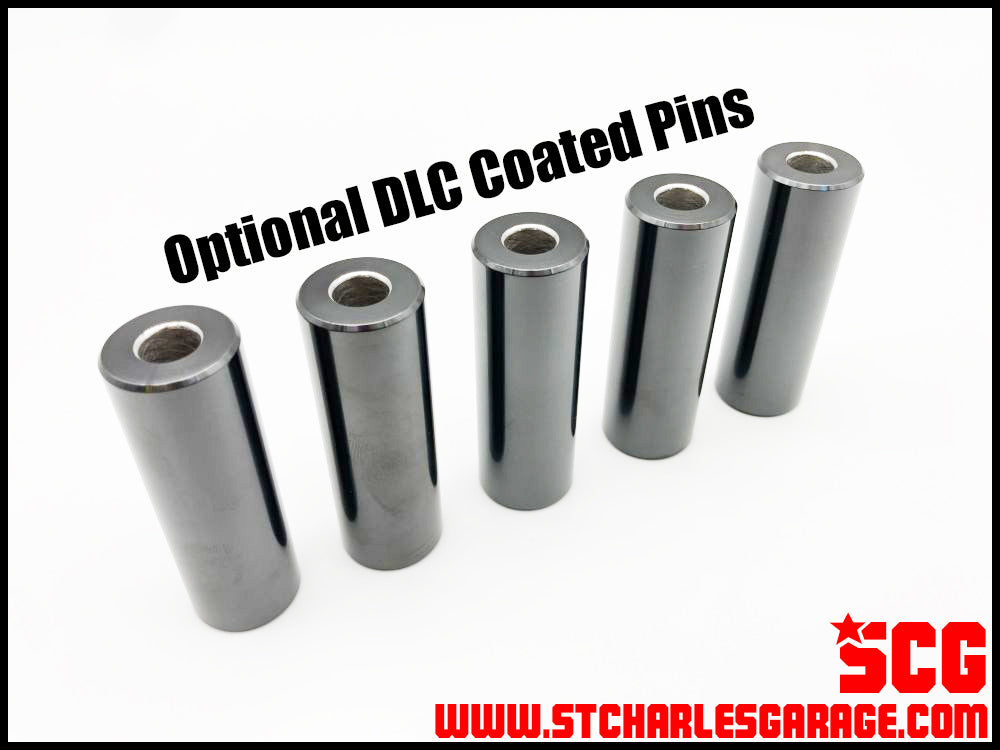

DLC Coated Pins:
-DLC coating provides an extremely low coefficient of friction, minimizing the wear and heat generated between the wrist pin, piston, and connecting rod.
-DLC coating offers superior protection against wear and galling, especially in high-power engines.
More Info: https://blog.trendperform.com/what-are-dlc-coatings
