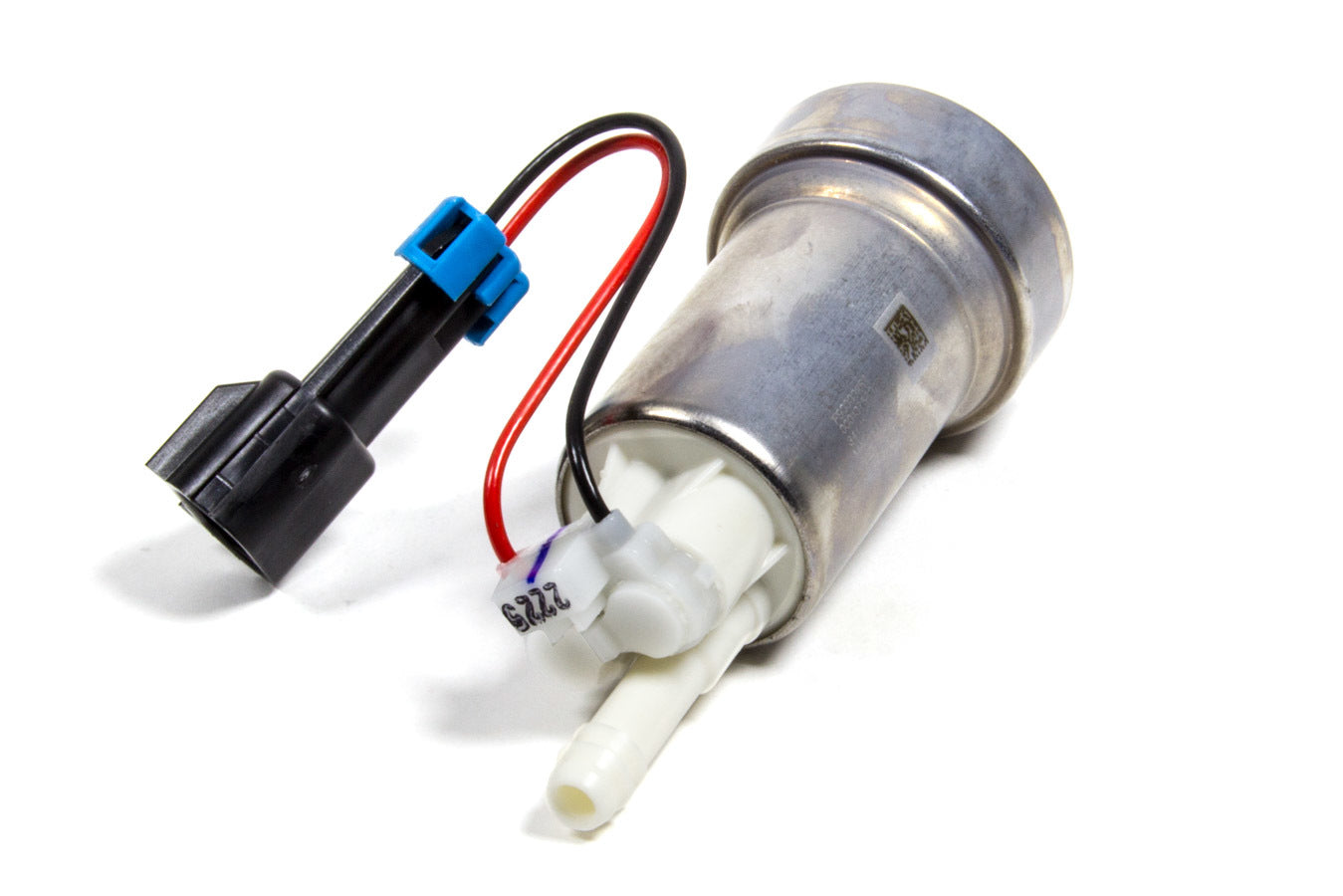

Genuine Walbro/TI F90000267 450LPH E85 Compatible Intank Fuel Pump

Genuine Walbro/TI F90000267 450LPH E85 Compatible Intank Fuel Pump

Dual channel turbine design for maximum efficiency under high pressure and high temperature applications
Made in USA by TI Automotive (formerly known as Walbro)

• Designed for engines with more than 750 HP
• Award-winning OE technology
• High-pressure, high-flow performance
• OEM technology designed and developed for E85
• Able to operate up to 87 psi total fuel pressure

All pumping components have been validated to OEM specifications for approved use in E85/flex fuel applications

The blades feed two high-pressure pumping channels, as opposed to a conventional single-stage pump that uses an impeller with a single row of blades at its outer edge.
This innovative design results in improved hot fuel flow, as well as minimal noise and current use, resulting in efficiency that’s 20 percent higher than conventional pumps.

SPECIFICATIONS: 465 lph @ 40 psi and 13.5V (14.1 amps) in gasoline
Outlet diameter: 10mm (3/8")

Diameter (upper body) 39mm
Diameter (lower body) 50mm
